ZCZ-15-Submersible Underwater Fountain Solenoid Valve

Location: China
Business Type: Manufacturer, Exporter
Brands:
Certificate:
Model:
Terms of payment and delivery:
Minimum order quantity:
Price: Consultation
Packing details:
Delivery time:
Payment method:

■Product Features

•Applicable medium: steam, gas, water, oil (≤20CST)

•Medium temperature: -5℃-200℃

• Mode of action: pilot type

•Working form: normally closed, normally open

•Valve body material: yellow mace (cast), cast iron, stainless steel

• Piston seal, sealing material: Teflon

• Coil protection level: iron shell coil IP54

• Coil power: 22VA(AC), 17W(DC)



■Structural features

•Electromagnetic pilot-operated secondary valve opening structure, sensitive action.

• There are good heat insulation and buffer components between the pilot valve and the main valve.

•Choose high-quality magnetic materials resistant to temperature and corrosion, piston type and molded PTFE valve port seal, high performance and long life.



■Product Usage

•Suitable for two-position automatic and remote on-off switching of the steam pipeline of heaters, radiators, dryers and textile setting machines, steaming and dyeing machines, vegetable dryers and other complete sets of equipment using steam as heating medium to achieve temperature Automatic control.

■Product Features

•Applicable medium: steam, gas, water, oil (≤20CST)

•Medium temperature: -5℃-200℃

• Mode of action: pilot type

•Working form: normally closed, normally open

•Valve body material: yellow mace (cast), cast iron, stainless steel

• Piston seal, sealing material: Teflon

• Coil protection level: iron shell coil IP54

• Coil power: 22VA(AC), 17W(DC)



■Structural features
•Electromagnetic pilot type secondary valve opening structure, sensitive action.

• There are good heat insulation and buffer components between the pilot valve and the main valve.

•Choose high-quality magnetic materials resistant to temperature and corrosion, piston type and molded PTFE valve port seal, high performance and long life.



■Product Usage

•Suitable for two-position automatic and remote on-off switching of the steam pipeline of heaters, radiators, dryers and textile setting machines, steaming and dyeing machines, vegetable dryers and other complete sets of equipment using steam as heating medium to achieve temperature Automatic control.

Contact Us PDF Download
  •

    Model

    Orifice(mm)

    Connection G thread

    CValue

    Work pressure(bar)

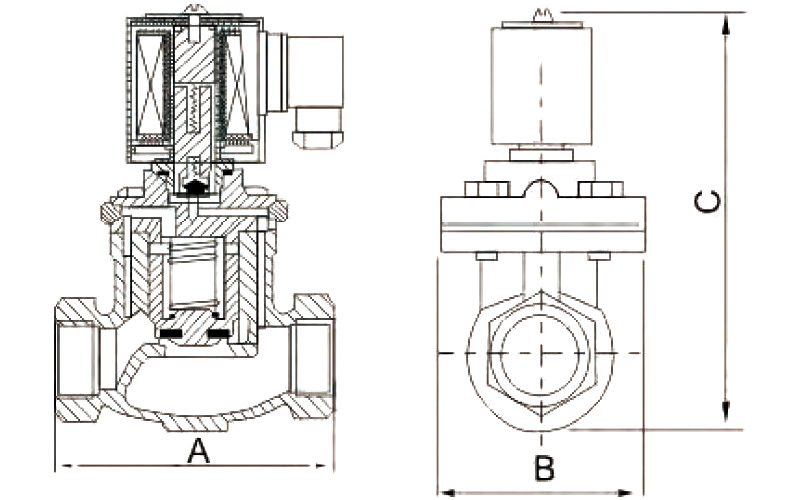

    Dimension

    A×B×C

    Body

    Material

    NC

    NC

    NO

    AC220V

    DC24V

    AC220V

    DC24V

    ZCZ-15

    17

    1/2"

    3.1

    0.4-12

    0.4-10

    0.4-0.8

    0.4-0.8

    80×60×145









    brass









    ZCZ-20

    17

    3/4"

    5

    0.4-12

    0.4-10

    0.4-0.8

    0.4-0.8

    80×60×145

    ZCZ-25

    22

    1"

    9.5

    0.4-12

    0.4-10

    0.4-0.8

    0.4-0.8

    88×71×155

    ZCZ-32

    30

    11/4"

    12

    0.4-12

    0.4-10

    0.4-0.8

    0.4-0-8

    110×80×175

    ZCZ-40

    30

    11/2"

    21

    0.4-12

    0.4-10

    0.4-0.8

    0.4-0.8

    110×80×175

    ZCZ-50

    40

    2"

    30

    0.4-12

    0.4-10

    0.4-0.8

    0.4-0.8

    118×90×190

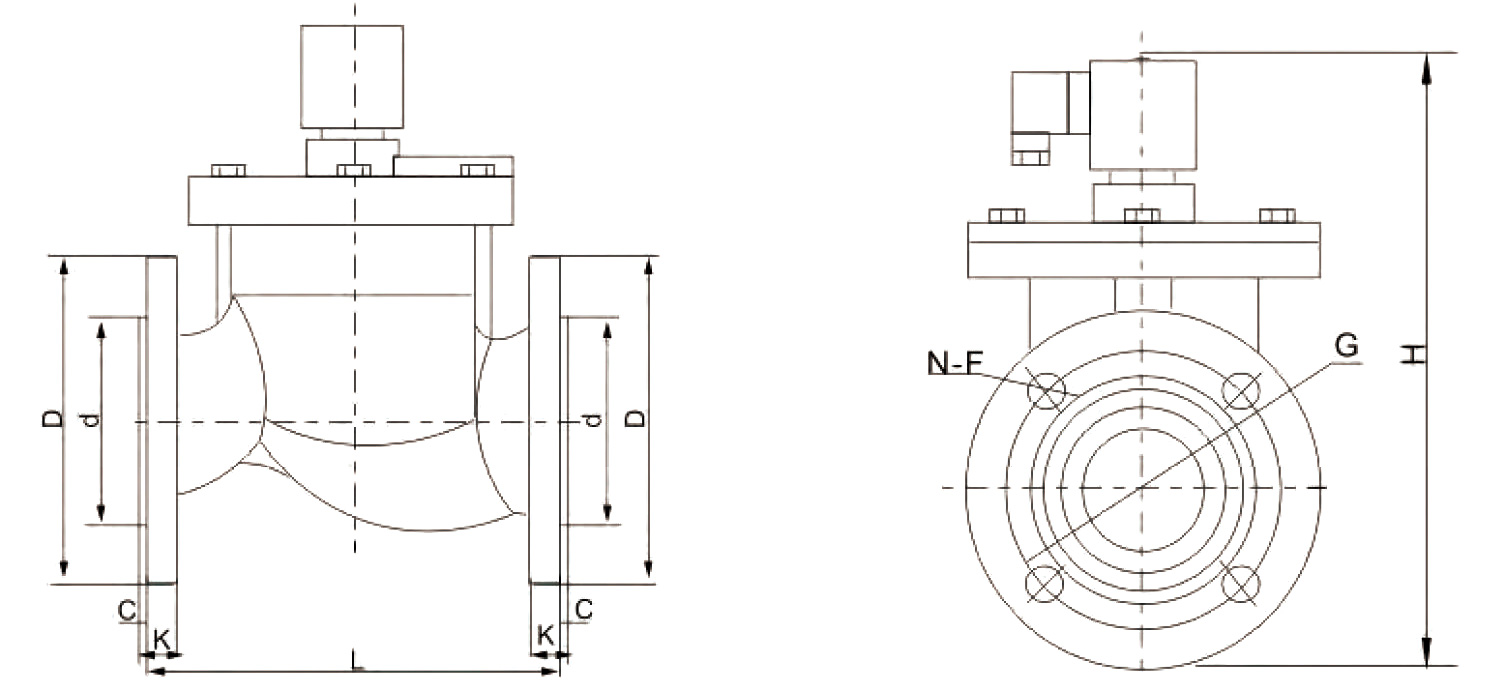

    ZCZ-20F

    17

    Flange

    5

    0.4-12

    0.4-10

    0.4-0.8

    0.4-0.8



    ZCZ-25F

    22

    9.5

    0.4-12

    0.4-10

    0.4-0.8

    0.4-0.8



    ZCZ-32F

    30

    12

    0.4-12

    0.4-10

    0.4-0.8

    0.4-0.8



    ZCZ-40F

    30

    21

    0.4-12

    0.4-10

    0.4-0.8

    0.4-0.8



    ZCZ-50F

    40

    30

    0.4-12

    0.4-10

    0.4-0.8

    0.4-0.8



    ZCZ-65F

    65

    45

    0.4-10

    0.4-10

    ----

    ----



    cast iron



    ZCZ-80F

    80

    70

    0.4-10

    0.4-10

    ----

    ----



    ZCZ-100F

    100

    100

    0.4-10

    0.4-10

    ----

    ----



    ZCZ-25SF

    25

    9.5

    0.4-12

    0.4-10

    0.4-0.8

    0.4-0.8



    SS304



    ZCZ-32SF

    40

    12

    0.4-12

    0.4-10

    0.4-0.8

    0.4-0.8



    ZCZ-40SF

    40

    21

    0.4 -12

    0.4-10

    0.4-0.8

    0.4-0.8



    ZCZ-50SF

    50

    30

    0.4 -12

    0.4-12

    0.4-0.8

    0.4-0.8
