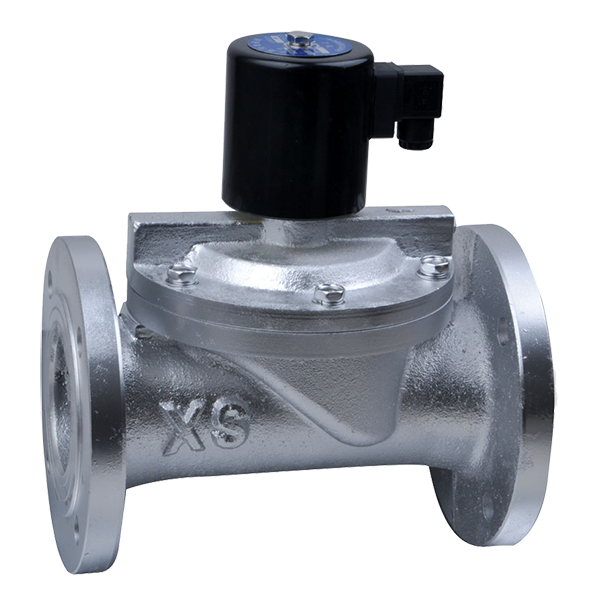

ZCM-80F-stainless steel steam solenoid valve

Location: China
Business Type: Manufacturer, Exporter
Brands:
Certificate:
Model:
Terms of payment and delivery:
Minimum order quantity:
Price: Consultation
Packing details:
Delivery time:
Payment method:

■Product Features

•Suitable medium: gas, methane, mashgas, natural gas, normal temperature liquid.

•Medium temp.: -5℃- 80℃

•Type: normally closed and normally open.

•Valve body material: brass(forged), stain less steel (precision casting),cast iron

•Diaphragm sealing material: VITON

•Coil Protection level: Plastic coil IP65

■Product Usage

•It is suitable for two-position on-off switching of combustion medium pipelines such as coal gas for automatic or remote temperature control.

Contact Us PDF Download
  •

    Flange connection size(mm)

    Body material

    MODEL

    DN

    L

    K

    C

    ΦD

    Φd

    N-ΦF

    ΦG

    H

    Brass

    ZCM-40F

    40

    150

    13

    2

    142

    85

    4-Φ18

    110

    215

    ZCM-50F

    50

    155

    13

    2

    152

    100

    4-Φ18

    125

    230

    ZCM-15SF

    17

    106

    11

    2

    95

    45

    4-Φ14

    65

    148

    Ss304

    Stainless Steel

    ZCM-20SF

    20

    108

    12

    2

    102

    55

    4-Φ14

    75

    155

    ZCM-25SF

    25

    140

    13

    2

    108

    65

    4-Φ14

    85

    165

    ZCM-32SF

    30

    148

    14

    2

    132

    78

    4-Φ18

    100

    200

    ZCM-40SF

    36

    158

    15

    2

    142

    85

    4-Φ18

    110

    210

    ZCM-50SF

    50

    185

    16

    2

    158

    100

    4-Φ18

    125

    228

    ZCM-65SF

    65

    252

    18

    3

    185

    115

    4-Φ18

    145

    305

    ZCM-80SF

    80

    272

    19

    3

    198

    130

    4-Φ18

    160

    320

    ZCM-100SF

    100

    343

    21

    3

    220

    160

    8-Φ18

    180

    345

    ZCM-50F

    50

    200

    18

    2

    158

    100

    4-Φ18

    125

    230

    cast iron

    ZCM-65F

    65

    250

    21

    3

    185

    115

    4-Φ18

    145

    300

    ZCM-80F

    80

    275

    22

    3

    198

    130

    4-Φ18

    160

    320

    ZCM-100F

    100

    348

    22

    3

    215

    160

    8-Φ18

    180

    335
