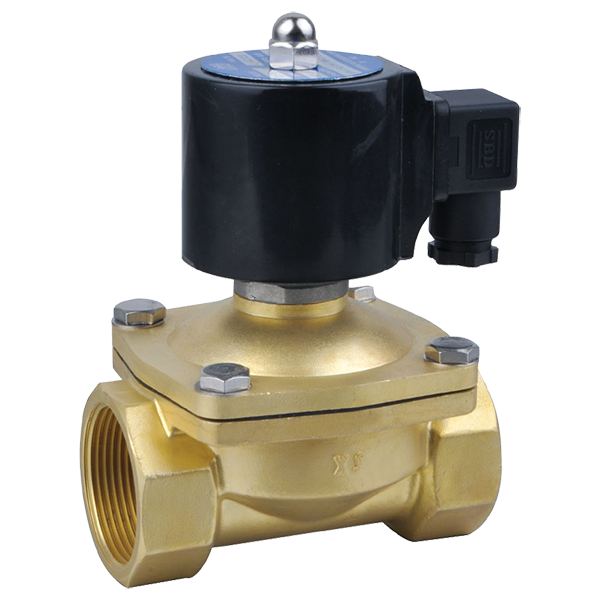

ZCA-40-direct acting water solenoid valve NC

Location: China
Business Type: Manufacturer, Exporter
Brands:
Certificate:
Model:
Terms of payment and delivery:
Minimum order quantity:
Price: Consultation
Packing details:
Delivery time:
Payment method:

■Product Features

•Suitable medium: gas

•Medium temp.: -5°C- 80°C

•Action type: direct acting type or diaphragm type

•Working pressure:-1~1bar

•Valve body material: brass(forged), stain less steel(precision casting)

•Diaphragm sealing: material: NBR/VITON

•Coil Protection level: Plastic coil IP65

■Structural features

• Low pressure or vacuum lines

• Large flow

• Direct-acting or direct-pull diaphragm type, fast response

• Large coil power consumption

Contact Us PDF Download

  • Model

    Connection G thread

    Orifice(mm)

    Cv

    Working pressure

    bar

    Coil configuration

    Dimension

    A×B×C

    AC220V

    DC24V

    Coil insulation grade

    Power

    VA

    W

    AC

    220V

    DC

    24V

    ZCA025-08

    1/4"

    2.5

    0.23

    -1~+1

    -1~+1

    F

    26

    18

    40×30×78

    ZCA040-10

    3/8"

    4

    0.6

    -1~+1

    -1~+1

    F

    26

    18

    47×32×84

    ZCA160-10

    3/8"

    17

    4.8

    -1~+1

    -1~+1

    F

    26

    18

    64×56×105

    ZCA160-15

    1/2"

    17

    4.8

    -1~+1

    -1~+1

    F

    26

    18

    64×56×105

    ZCA200-20

    3/4"

    20

    7.6

    -1~+1

    -1~+1

    F

    26

    18

    65×56×115

    ZCA250-25

    1"

    25

    12

    -1~+1

    -1~+1

    F

    26

    18

    85×73×120

    ZCA320-32

    11/4"

    30

    22

    -1~+1

    -1~+1

    F

    26

    18

    94×79×130

    ZCA320-32

    11/4"

    32

    24

    -1~+1

    -1~+1

    F

    35

    30

    110×88×150

    ZCA400-40

    11/2"

    36

    26

    -1~+1

    -1~+1

    F

    35

    30

    108×88×158

    ZCA400-40

    11/2"

    40

    28

    -1~+1

    -1~+1

    F

    35

    30

    112×94×160

    ZCA500-50

    2"

    44

    40

    -1~+1

    -1~+1

    F

    35

    30

    118×94×172

    ZCA500-50

    2"

    50

    45

    --1~+1

    -1~+1

    F

    35

    30

    155×114×180

    ZCA400-40F

    Flange Connection

    40

    28

    -1~+1

    -1~+1

    F

    35

    30

    150×142×225

    ZCA500-50F

    50

    45

    -1~+1

    -1~+1

    F

    35

    30

    185×152×230
