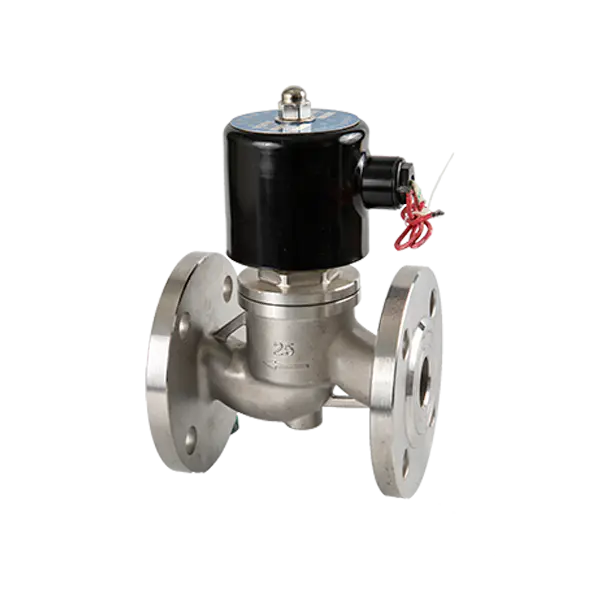

ZBSF-25SF-stainless steel steam solenoid valve

Location: China
Business Type: Manufacturer, Exporter
Brands:
Certificate:
Model:
Terms of payment and delivery:
Minimum order quantity:
Price: Consultation
Packing details:
Delivery time:
Payment method:

■Product features

•Suitable medium: Gas ,water

•Medium temp.: -5℃-220℃

•Working status: 0-16 bar 1-16bar ( ≥65 )

•Valve body material: stainless steel

•Piston sealing material: PTFE

•Coil Protection level: coil Ip54

•Coil Power: 50VAC/30W 70VA/50W

Contact Us PDF Download
  •

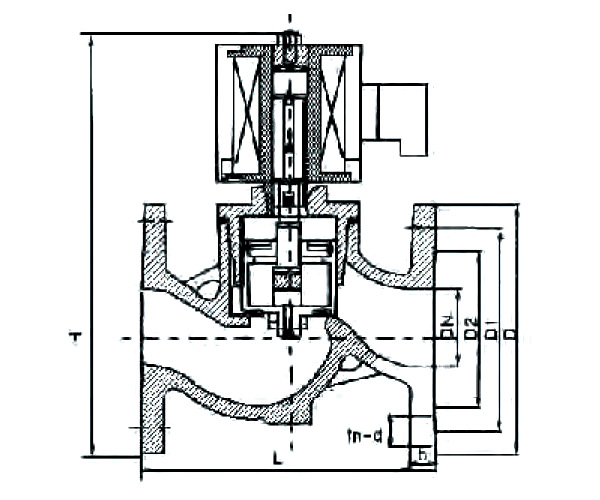

    Flange connection size(mm)

    Product number

    DN

    L

    K

    C

    ΦD

    Φd

    N-ΦF

    ΦG

    H

    ZBSF-15SF

    15

    115

    14

    2

    95

    45

    4-Φ14

    65

    190

    ZBSF-20SF

    20

    115

    14

    2

    105

    55

    4-Φ14

    75

    195

    ZBSF-25SF

    22

    125

    14

    2

    112

    65

    4-Φ14

    85

    200

    ZBSF-32SF

    30

    160

    16

    2

    132

    75

    4-Φ18

    100

    205

    ZBSF-40SF

    30

    160

    16

    2

    148

    82

    4-Φ18

    110

    215

    ZBSF-50SF

    40

    190

    18

    3

    158

    98

    4-Φ18

    125

    235

    ZBSF-65SF

    60

    250

    18

    3

    178

    118

    4-Φ18

    145

    230

    ZBSF-80SF

    70

    272

    19

    3

    195

    135

    8-Φ18

    160

    258

    ZBSF-100SF

    85

    322

    21

    3

    215

    155

    8-Φ18

    180

    280
