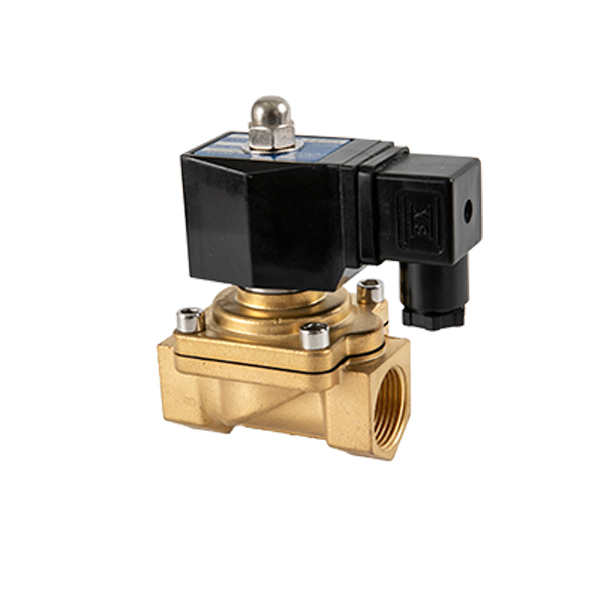

PU-20-Normally Open water solenoid valve.

Location: China
Business Type: Manufacturer, Exporter
Brands:
Certificate:
Model:
Terms of payment and delivery:
Minimum order quantity:
Price: Consultation
Packing details:
Delivery time:
Payment method:

■PU Series water (hot water) & gas Solenoid Valve

■Product Features

•Suitable medium: liquid.water, hot water. gas,mashgas.oil (≤20CST)

•Medium temp.: -5℃-80℃

•Action type: direct acting type ,indirect acting type

•Working status:normally closed / normally open

•Valve body material: SS3041 forged copper

•Diaphragm sealing material: NBR/EPDM/VITION

•Coil Protection level: Plastic coil IP65/ iron coil IP54

Contact Us PDF Download
  • Model

    Connection

    Gtdread

    G

    Orifice

    (mm)

    Cv

    Max. press

    Max. Temp.℃

    NBR/VITON

    Coil configuration

    Dimension

    A×B×C

    Min.press

    Max Working pressure

    Coil insulation grade

    Power

    Air

    Mashga

    Water

    Liquid

    Oil≤20CST

    VA

    W

    AC220V

    DC24V

    AC/DC

    AC/DC

    AC/DC

    PU-10

    3/8"

    17

    4.8

    0

    16

    16

    8

    80(180)

    F

    30

    30

    68×48×95

    PU-15

    1/2"

    17

    4.8

    0

    16

    16

    8

    80(180)

    F

    30

    30

    68×48×95

    PU-20

    3/4M

    18

    7.6

    0

    16

    16

    8

    80(180)

    F

    30

    30

    74×54×105

    PU-25

    1"

    25

    12

    0

    16

    16

    8

    80(180)

    F

    30

    30

    98×72×108

    PU-32

    11/4"

    34

    24

    0

    16

    16

    8

    80(180)

    F

    35

    30

    120×88×158

    PU-40

    11/2"

    34

    30

    0

    16

    16

    8

    80(180)

    F

    35

    30

    120×88×158

    PU-50

    2"

    49

    48

    0

    16

    16

    8

    80(180)

    F

    35

    30

    150×110×178

    PU-10S

    3/8"

    14

    4.7

    0

    16

    16

    8

    80(180)

    F

    30

    30

    70×48×95

    PU-15S

    1/2"

    14

    4.7

    0

    16

    16

    8

    80(180)

    F

    30

    30

    70×48×95

    PU-20S

    3/4"

    19

    7.6

    0

    16

    16

    8

    80(180)

    F

    30

    30

    78×54×105

    PU-25S

    1"

    25

    12

    0

    16

    16

    8

    80(180)

    F

    30

    30

    98×72×118

    PU-32S

    11/4"

    36

    24

    0

    16

    16

    8

    80(180)

    F

    35

    30

    120×90×158

    PU-40S

    11/2"

    36

    30

    0

    16

    16

    8

    80(180)

    F

    35

    30

    120×90×158

    PU-50S

    2"

    49

    48

    0

    16

    16

    8

    80(180)

    F

    35

    30

    155×112×178
