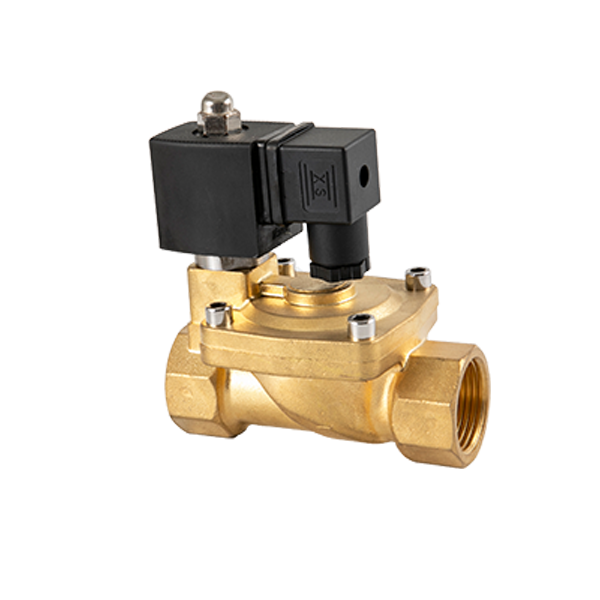

DF-20-liquid solenoid valve

Location: China
Business Type: Manufacturer, Exporter
Brands:
Certificate:
Model:
Terms of payment and delivery:
Minimum order quantity:
Price: Consultation
Packing details:
Delivery time:
Payment method:

■DF(ZCS) Series 2/2 way diaphragm liquid solenoid valve

■Product Features

•Suitable medium:liquid,gas,oil (≤20CST)

•Medium temp.: -5℃-80℃

•Action type: pilot operated type

•Working status: normally closed / normally open

•Valve body material: brass(forged),cast iron,SS304

•Diaphragm sealing: material: NBR/VITON

•Coil Protection level: Plastic coil IP65

Contact Us PDF Download

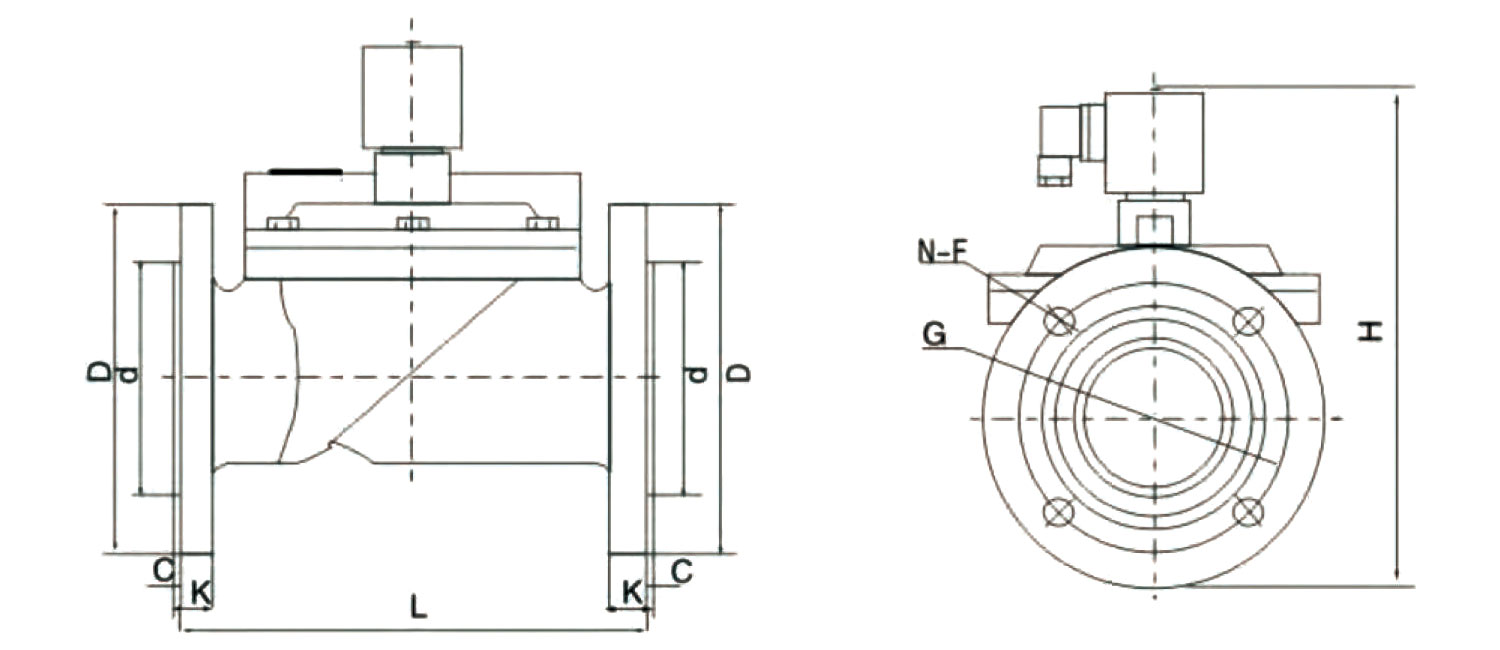

  • ■Flange connection size

    Model

    DN

    L

    K

    C

    ΦD

    Φd

    N-ΦF

    ΦG

    H

    DF-40F

    40

    165

    17

    2

    145

    85

    4-Φ14

    110

    202

    DF-50F

    50

    200

    17

    2

    160

    100

    4-Φ14

    125

    222

    DF-65F

    65

    255

    21

    2

    185

    110

    4-Φ18

    145

    270

    DF-80F

    80

    275

    22

    2

    198

    130

    4-Φ18

    160

    298

    DF-100F

    100

    348

    22

    3

    215

    160

    8-Φ18

    180

    300

    DF-125F

    125

    405

    25

    3

    250

    180

    8-Φ18

    210

    390

    DF-150F

    145

    450

    28

    3

    285

    210

    8-Φ22

    240

    428

    DF-65SF

    65

    252

    18

    3

    185

    115

    4-Φ18

    145

    250

    DF-80SF

    80

    272

    19

    3

    198

    130

    4-Φ18

    160

    265

    DF-100SF

    100

    343

    21

    3

    220

    160

    8-Φ18

    180

    295



    ■Flange connection dimensions

    ■Technical Data

    Model

    Connection G tdread

    Orifice

    (mm)

    Cv

    Coil configuration

    Work pressure

    Dimension

    A×B×C

    Material

    Coil insulation grade

    Power

    Normally Closed

    Normally Open

    VA

    W

    AC

    DC

    AC

    DC

    AC220V

    DC24V

    DF-15

    1/2"

    15

    4.5

    F

    22

    17

    0.3-16

    0.3-10

    0.3-10

    0.3-8

    85×53×117

    Brass

    DF-20

    3/4"

    20

    7.2

    F

    22

    17

    0.3-16

    0.3-10

    0.3-10

    0.3-8

    90×58×120

    DF-25

    1-

    25

    11

    F

    22

    17

    0.3-16

    0.3-10

    0.3-10

    0.3-8

    110×72×130

    DF-32

    11/4"

    32

    14

    F

    22

    17

    0.3-16

    0.3-8

    0.3-10

    0.3-8

    144×94×152

    DF-40

    11/2"

    40

    24

    F

    22

    17

    0.3-16

    0.3-8

    0.3-10

    0.3-8

    144×94×152

    DF-50

    2"

    50

    35

    F

    22

    17

    0.3-16

    0.3-8

    0.3-10

    0.3-8

    175×128×170

    DF-40F

    Flange Connect

    40

    24

    B

    20

    16

    0.3-16

    0.3-8

    0.3-8

    0.3-8



    Cast iron

    DF-50F

    50

    35

    B

    20

    16

    0.3-16

    0.3-8

    0.3-8

    0.3-8



    DF-65F

    65

    52

    B

    20

    16

    0.3-16

    0.3-8

    0.3-8

    0.3-6



    DF-80F

    80

    82

    B

    20

    16

    0.3-16

    0.3-8

    0.3-8

    0.3-6



    DF-100F

    100

    125

    B

    20

    16

    0.3-16

    0.3-8

    0.3-8

    0.3-6



    DF-125F

    125

    220

    B

    70

    50

    0.3-16

    0.3-8

    0.3-6

    0.3-6



    DF-150F

    145

    280

    B

    70

    50

    0.3-16

    0.3-8

    0.3-6

    0.3-6



    DF-65SF

    65

    52

    F

    30

    30

    0.3-16

    0.3-8

    0.3-8

    0.3-6



    SS304

    DF-80SF

    80

    82

    F

    30

    30

    0.3-16

    0.3-8

    0.3-8

    0.3-6



    DF-100SF

    100

    125

    F

    30

    30

    0.3-16

    0.3-8

    0.3-8

    0.3-6
